Solid Aluminium Panel

Solid Aluminium Panel is a non-combustible single layer aluminium panel. It is pre-finished with nice color and pre-fabricated into cassettes as per required shapes. It meets high façade cladding standards in most countries regarding to fireproof and material strength.

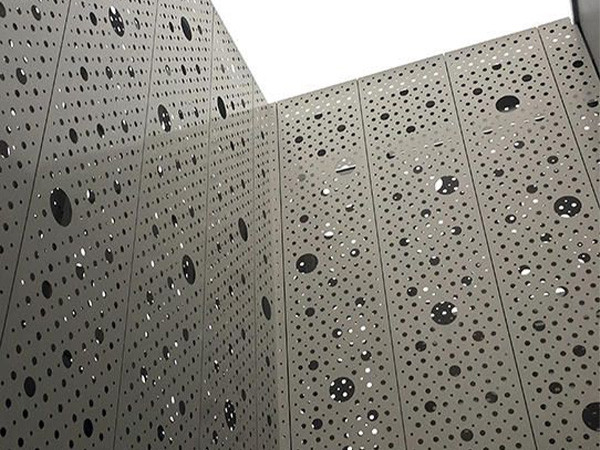

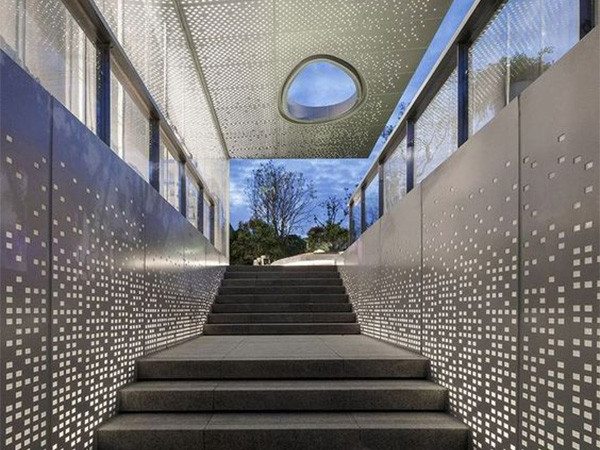

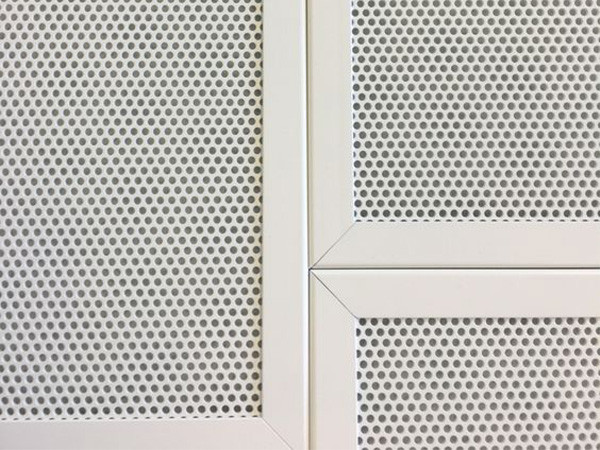

Solid aluminium panel is a material that is with high formability, it can be made with regular flat cassette panel, curved panel, hyperboloid panel, perforated panel or laser cut panel with different patterns. Almost any shapes or patterns needed for architectural cladding designs, can be made with solid aluminium panel. We use turret punching technology for making perforated aluminium panel, and laser cut to make customized surface patterns for aluminium panel. And the after fabrication, the panel surface is either powder coated or liquid paint sprayed to get a nice decorative color.

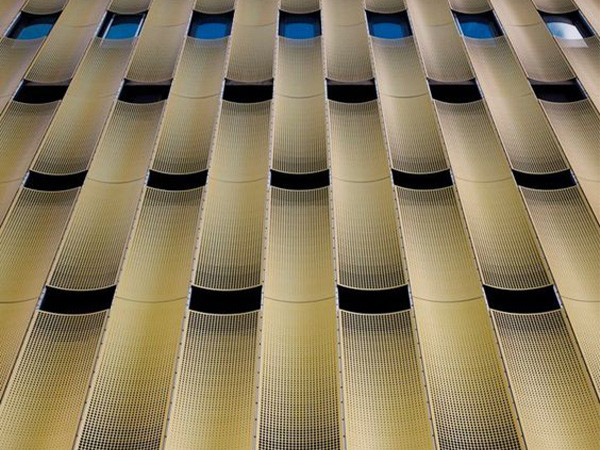

Generally we use this material for facade cladding, ceiling, interior wall clading for office building, shopping mall, airport, train station, hospital, stadium etc. The aluminium solid panel is available in thickness 2mm, 2.5mm, 3mm depending on project types and budgets.

Specifications of Solid Aluminium Panel

Panel thickness	3mm (optional from 2mm, 2.5mm to 4mm)
Aluminium alloy	3003 (optional is 1100mm, 5005 etc)
Coating technology	Pre-finished with powder coating or liquid paint spray coating
Coating type	PVDF, PE

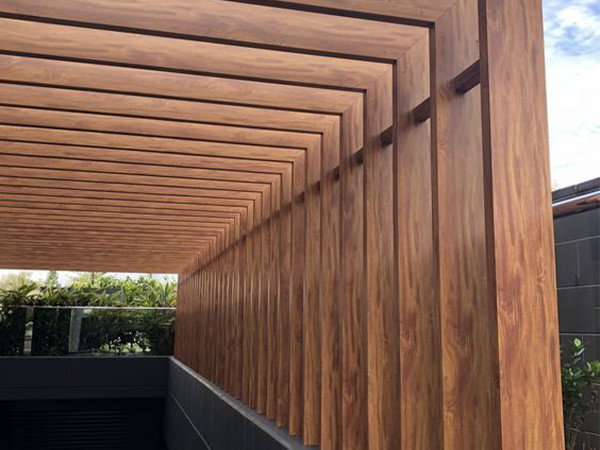

Color options	Metallic colors, solid colors, wooden colors, stone colors

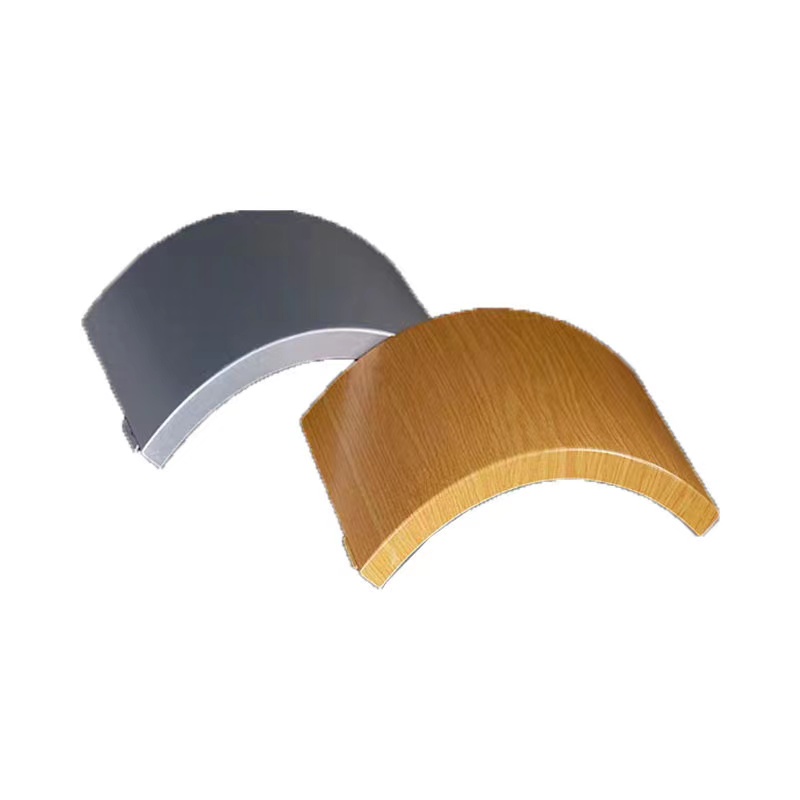

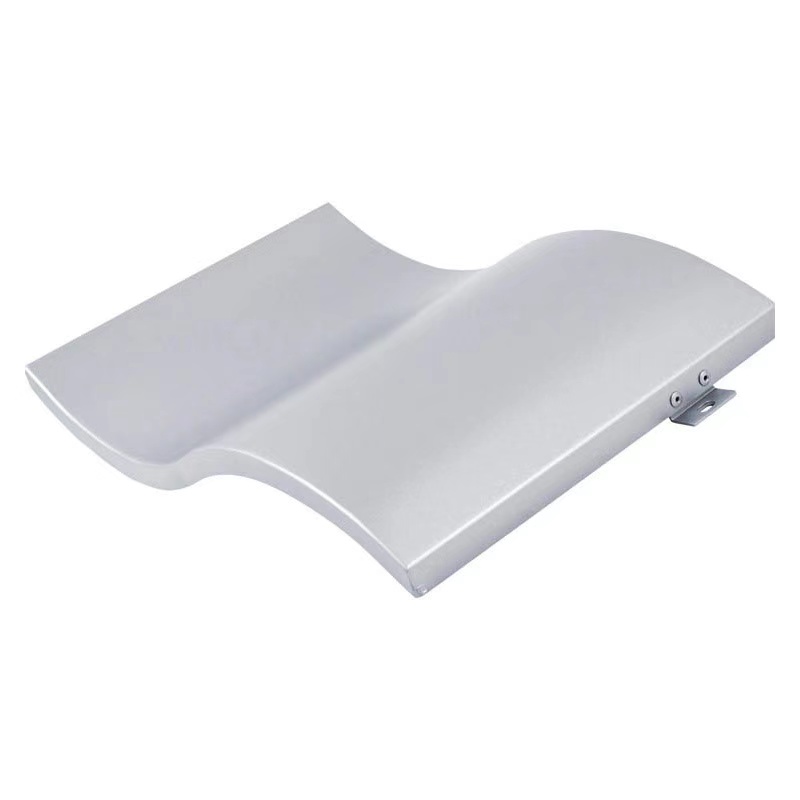

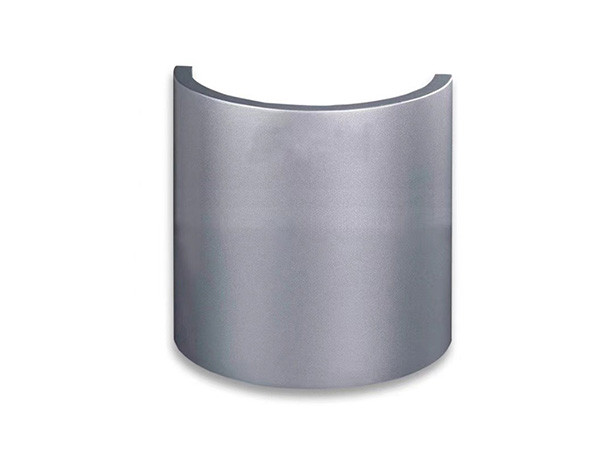

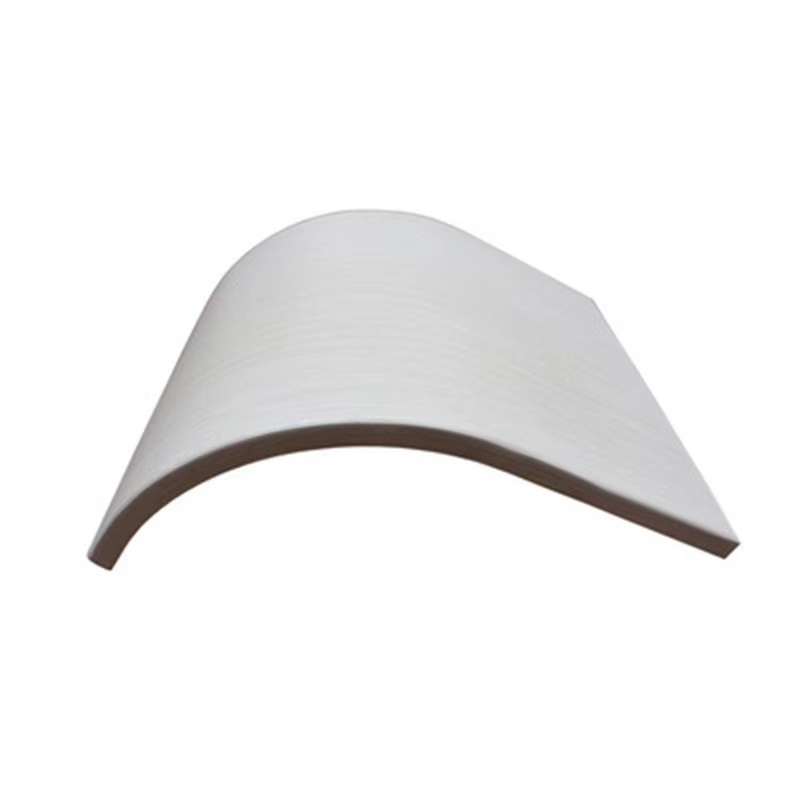

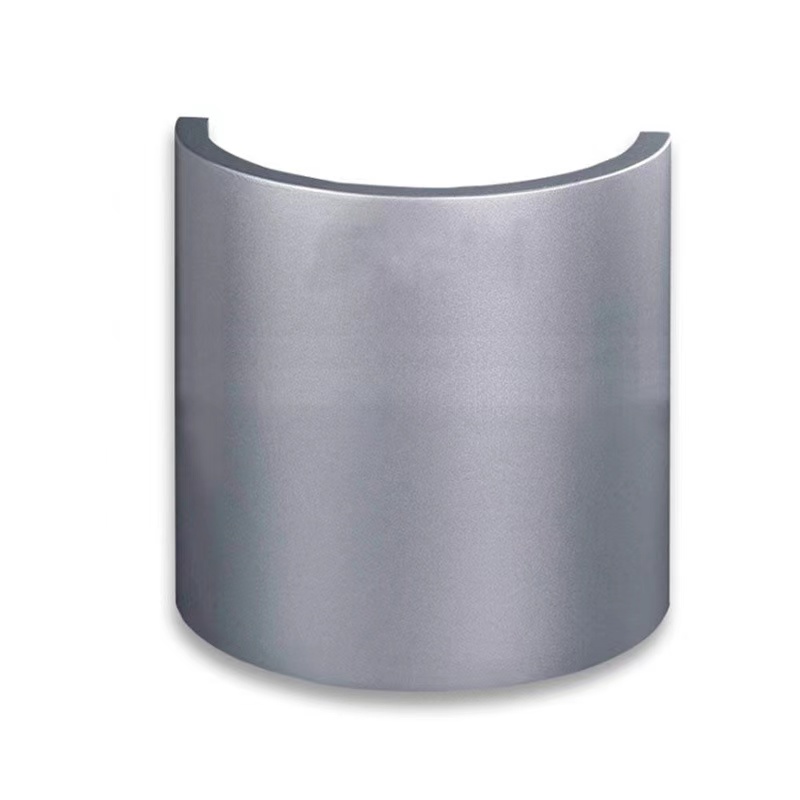

Shapes	Regular flat panel, single curved panel, hyperboloid curved panel, odd shape panel

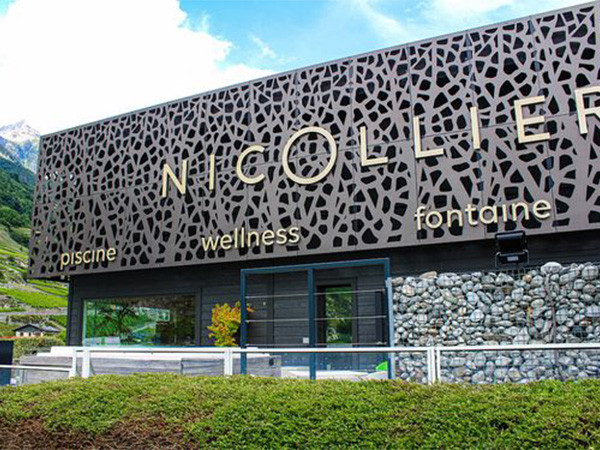

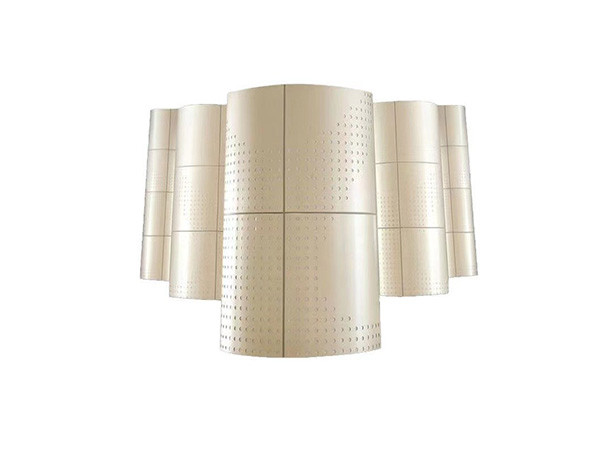

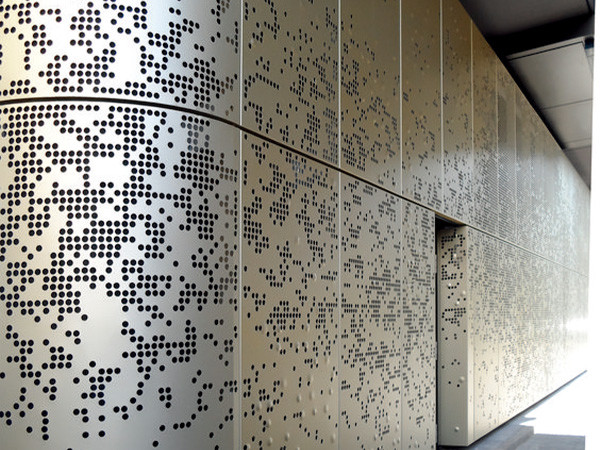

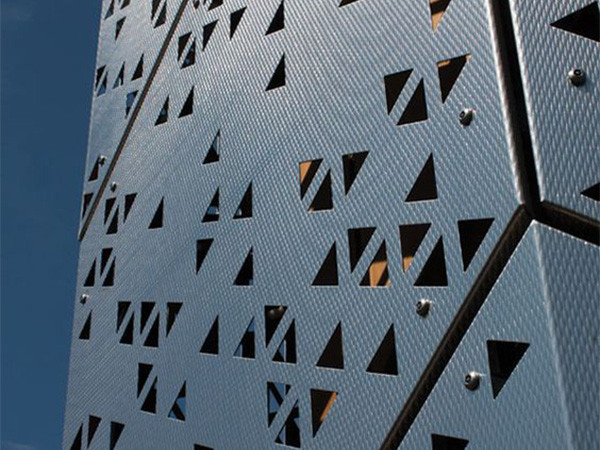

Patterns	Perforated or laser cut to achieve different types of designs: holes, triangle, rectangle, customized pattern
Fabrication	Edge folding, curving, adding brackets, bending, adding reinforcement ribs etc included

Key Benefits of Solid Aluminium Panel

Non-combustible		Super weather proof
In many countries, the building code has clearly specified that building cladding materials have to be non-combustile. Solid aluminium panel is a single layer panel made of full aluminium, it cannot be ignited or burnt.		Panel surface is nicely pre-painted with durable PVDF outdoor grade paints or powdercoat, a 10 to 20 years outdoor color warranty is given (Ps: for indoor use we also provide PE coating as alternative). And aluminium panel itself is a stable metal that is not easy to rust.
Quick installation		Unlimited shapes achievable
All the panels are pre-fabricated into cassettes in our workshop as per customers' shop drawing, once shipped to project site they are ready to be installed directly as per the drawing position numbers.		With perforation, single curved, hyperboloid curved, laser cutting, welding & folding technology, solid aluminium panel can be made into many patterns, shapes or even 3D look.
Unlimited color options		Fully recyclable
Solid aluminium panel are available in unlimited metallic, solid colors as per RAL or Pantone color codes and wood, stone grains.		The aluminium panel can be fully recycled when it's no longer needed. Care to mother earth is always our first concern.

Technical Data of Solid Aluminium Panel

Basic Information:
Item		Value		Tolerance
Panel Thickness		3mm		±0.2mm
Aluminium Alloy		3003 (optional 1100 / 5005)		N/A
Panel Width		1220mm (or customized)		±2mm
Panel Length		2440mm (or customized)		±4mm
Coating Type		PVDF Spray Paint / Powder Coat		N/A
Panel Weight		8.16kgs/sq.m		±5%

Chemical Composition (based on alloy 3003):
Element	Actual Value		Element	Actual Value
Al	Rest		Si	0.134
Fe	0.489		Cu	0.1
Mn	1.07		Mg	0.0058
Cr	0.0039		Ni	0.005
Zn	0.005		Ti	0.03

Mechanical Properties (based on alloy 3003)
Property		Test result
Yield Strength		150MPa
Tensile Strength		155MPa
Elongation		11.00%

Painting Dry Film Properties
Property	Sub-Item		Test result
Dry Film Thickness	2 coats PVDF spraying		25μm (±5)
	3 coats PVDF spraying		40μm (±5)
	Powder coating		60μm (min 50)
Gloss Value	ASTM D523-89		20-70
Film Adhesion	Drying Adhesion		Grade 0
	Wet Adhesion		Grade 0
	Boiling Water Adhesion		Grade 0
Dry Film Hardness			2H
Hydrochloric Acid Resistance			No change
Mortar Resistance			No change
Solvent Resistance			No change
Abrasion Resistance			5.2L/μm
Impact Resistance			50kg·cm, no removal of film from substrate
